Asynchronous Dual Workstation CO2 Laser Cutting Machine Non Metallic Efficient Production System

Product Categories

Shenzhen Temei Machinery Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Asynchronous Dual Workstation CO2 Laser Cutting Machine Non Metallic Efficient Production System
Brand: Temei
Price: 1 USD

Multiple positioning accuracy : 0.01mm

optical path design : Adopts a Flying Optical Path Design

Workbench : Knife-Blade Table

Work Surface : 620*900mm

drive system : Taiwan Imported Linear Guide Rail

weight of equipment : 800kg

device name : Asynchronous Double-head Laser Cutter

cooling-down method : Hybrid Water Cooling Protection System

project : parameter declaration

Device Size : 2240x1580x1200mm

model : TM-L1610SIICCD

positioning accuracy : 0.01mm

Applicable Material : Acrylic, Leather, Organic Glass, Cardboard, Wood, Bamboo, Fabric, etc.

Brand Name : Temei

Type of Laser : CO2 Laser

driving system : Imported Mitsubishi Servo Drive from Japan

Model Number : TM-L1610SCCDII

Place of Origin : china huizhou

cutting speed : 20m/min

working voltage : AC 220V/50Hz±5%

Control System : Zhiyuan

Support format : DXF, PLT, AI, DST, DSB

Contact Now

Asynchronous Dual Workstation CO2 Laser Cutting Machine Non Metallic Efficient Production System

Configuration and Parameters

project	parameter declaration

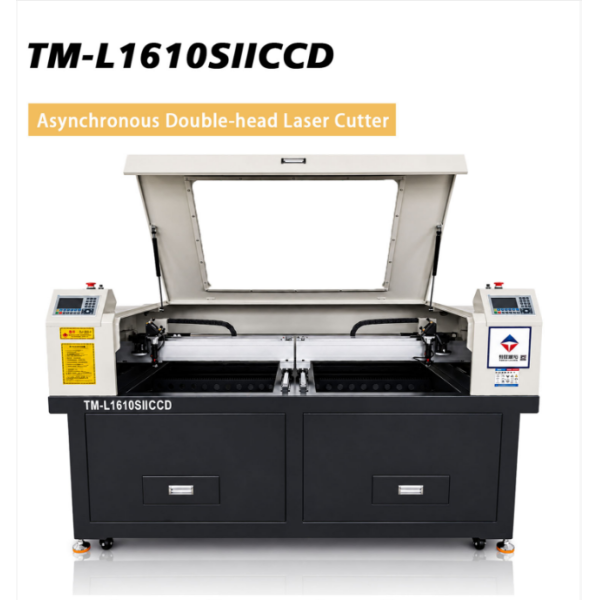

device name	Asynchronous Double-head Laser Cutter
model	TM-L1610SIICCD
Work Surface	620*900mm
Type of Laser	CO2 Laser
optical path design	Adopts a Flying Optical Path Design
cooling-down method	Hybrid Water Cooling Protection System
driving system	Imported Mitsubishi Servo Drive from Japan
drive system	Taiwan Imported Linear Guide Rail
Control System	Zhiyuan
Border Inspection System	Optional CCD Edge Detection Cutting
positioning accuracy	0.01mm
Multiple positioning accuracy	0.01mm
cutting speed	20m/min
Workbench	Honeycomb Working Table
working voltage	AC 220V/50Hz±5%
Support format	DXF, PLT, AI, DST, DSB
Device Size	2240x1580x1200mm
weight of equipment	800kg
Applicable Material	Acrylic, Leather, Organic Glass, Cardboard, Wood, Bamboo, Fabric, etc.
